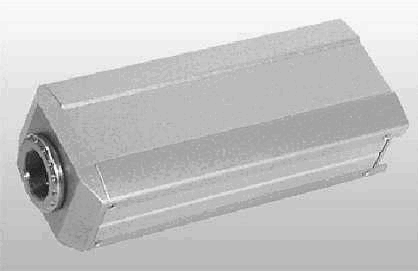

DX 30 camera is a complete system arrangement containing all components - from the digital image acquisition to the storage into the PC. The components are well suited to each other and ensure a simple installation and an optimal control.

Excellent images are produced and are available in a modular software concept. Beside the known data formats (bmp, tif, ...) the DX 30 can also produce raw data.

Raw data offer the possibility to represent the data of the image acquisition as color or black-and-white image at a later time or to select only a certain part of the image.

Another advantage is the variable structure of the control software. The user can choose between many possible adjustments and measuring methods and so create his own software that is suitable for his special task.

This system meets all demands: from obtaining a quick and sure laboratory result by pressing a button to the scientific experiment with camera raw data.

Beside a direct integration for archiving and measuring under K-Vision ImageBase, a software development kit (SDK), the connection of the camera system via a TWAIN interface and customer specific solutions are available.

n Ready to install complete
      system with camera, PCI
      interface board and
      software

n Progressive Scan CCD with
      1300 x 1030 picture elements

n 12 Bit digitization with
      more than 60 dB signal to
      noise ratio each color
      channel

n 10 Frames/second

n Horizontal and vertical
      binning 2 to 8 for
      increasing the sensitivity
      and shorter image
      sequences

n Integration into adequate
      programs via TWAIN
      Interface

n Modular unit of the software
      package K-Vision Options:
      ImageBase for archiving and
      interactive image
      measurement
